Multiple time settings heat press machine Full digital integrated display control, temperature, time, counting Aluminum heat plate with die casting heating pipe Sliding heat plate head design Easily adjust the certain pressure High accuracy of signal indication when press process is completed 2.36” pressure adjustable range can process a wider range of products Powered by an air compressor ( not included)

-9%

28x36-Large-Formart-Pneumatic-Heat-Press-with-Dual-Platen-990x990

28inx36in-large-format-heat-press-machine-990x973

Click to enlarge

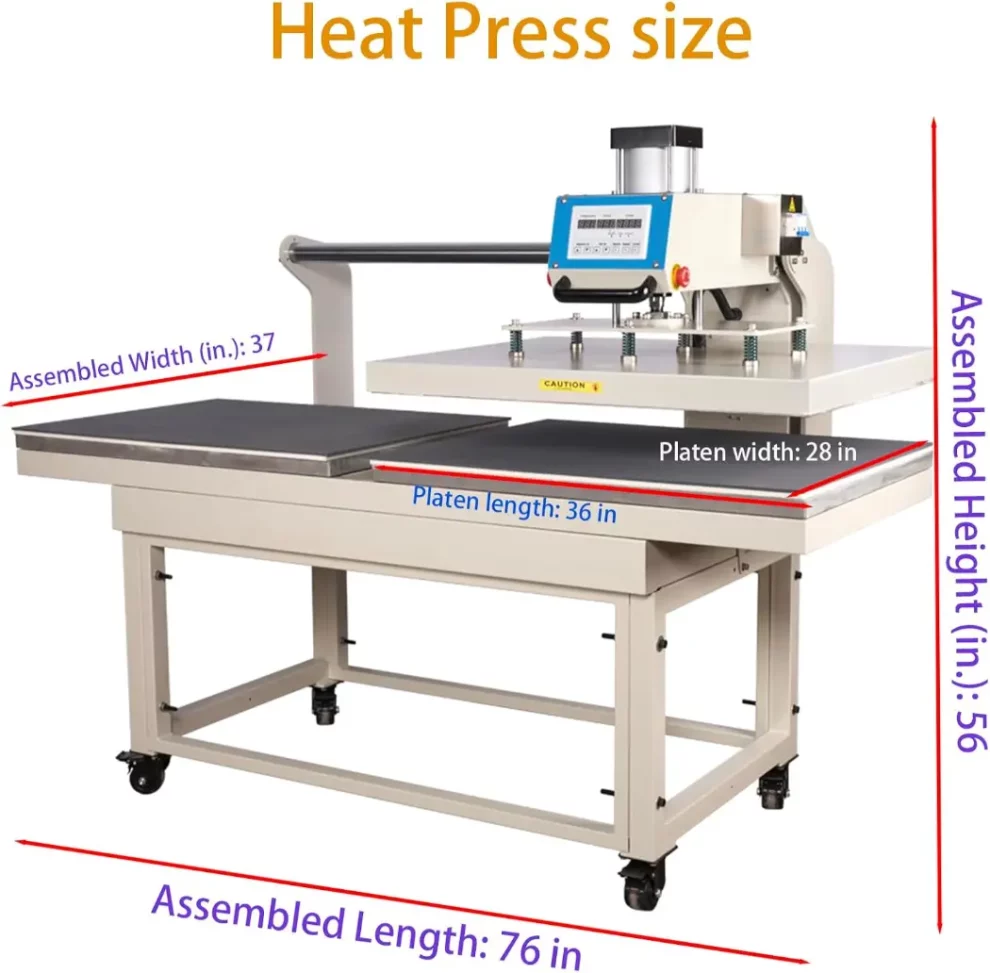

28″x36″ Large Format Pneumatic Dual Platen Heat Press

Original price was: $3,498.00.Current price is: $3,168.00.

Arrival in 7-15 Business Days.
Lifetime Technical Support
30-day Easy Returns

Double-station sliding pneumatic heat stamping machine with adjustable heating plate lifting speed and cylinder pressure (0-10 kg), to achieve accurate control. Suspended U-shaped bottom plate design, the mold can be replaced easily. The lower aluminum table can slide left and right, which can realize double operation and higher efficiency.

Feature

Multiple time settings heat press machine

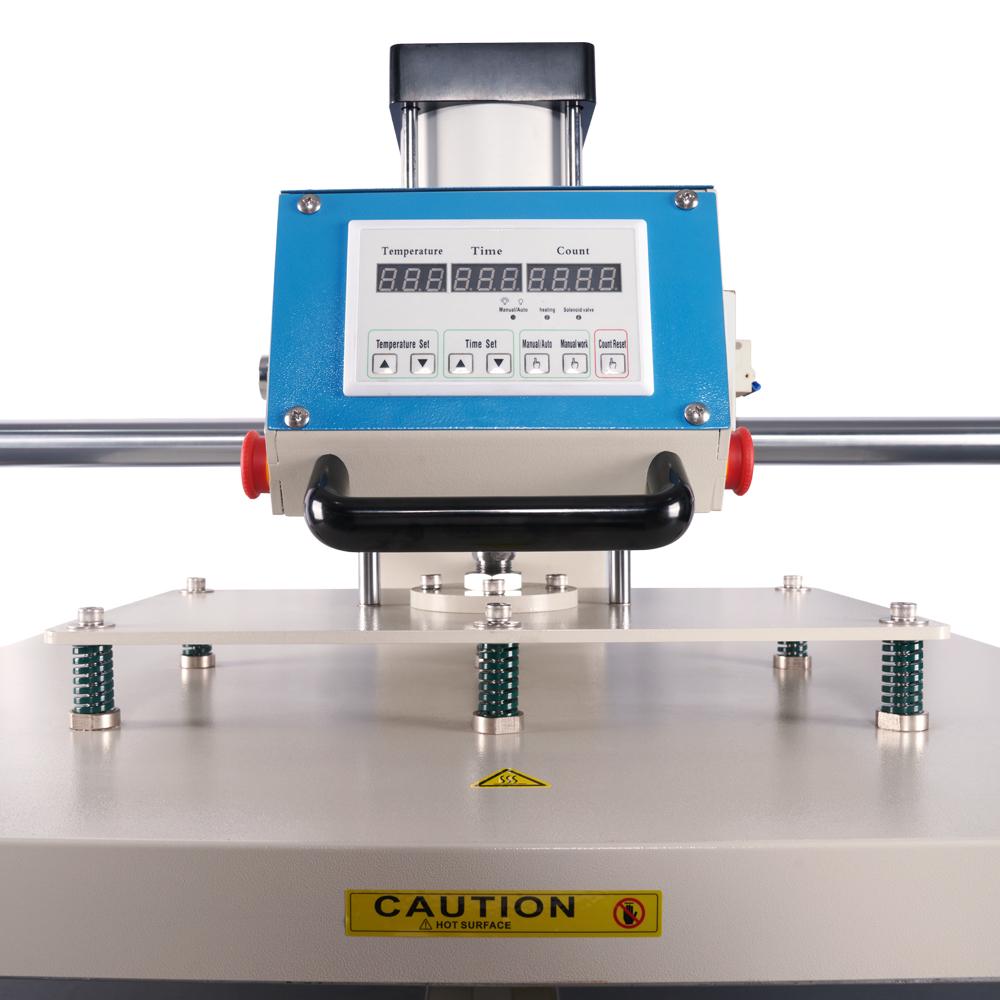

Full digital integrated display control, temperature, time, counting
Aluminum heat plate with die casting heating pipe
Sliding heat plate head design
Easily adjust the certain pressure
High accuracy of signal indication when press process is completed
2.36” pressure adjustable range can process a wider range of products

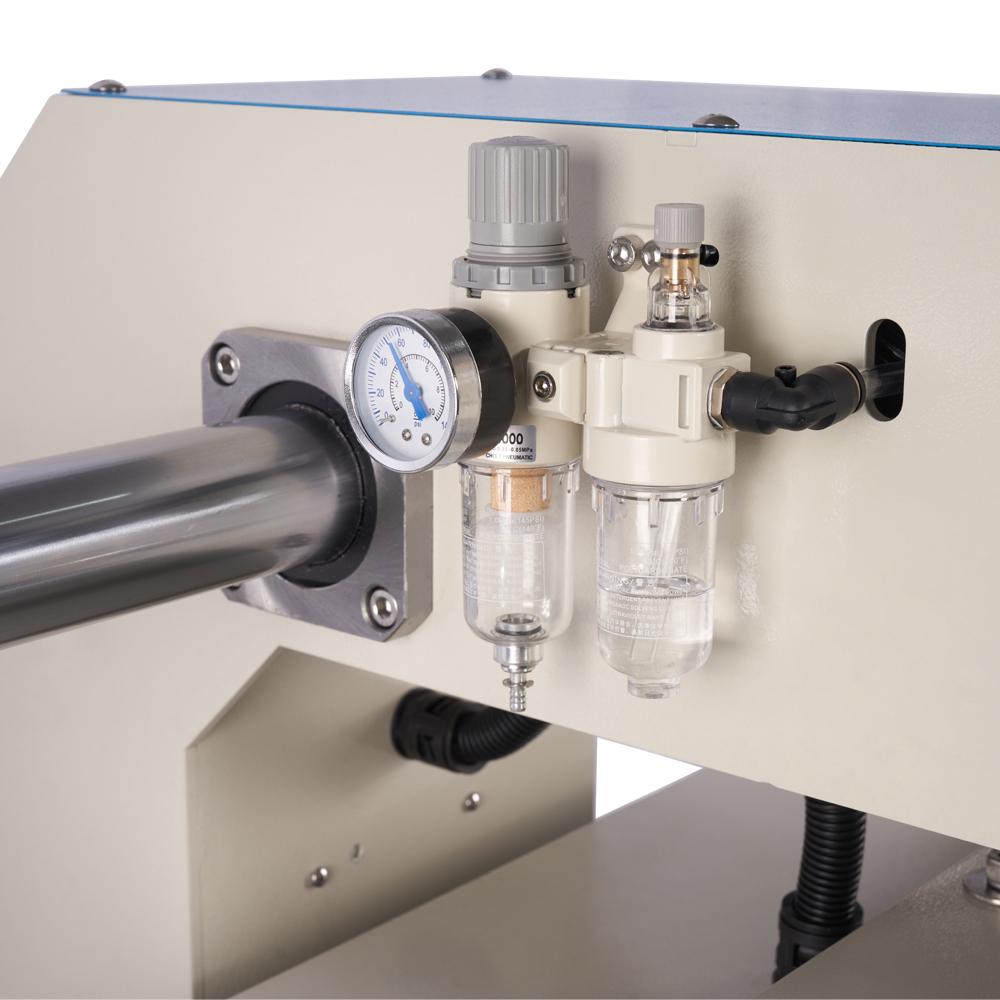

Powered by an air compressor ( not included)

Specification

28″x36″ Large Format Pneumatic Heat Press Machine

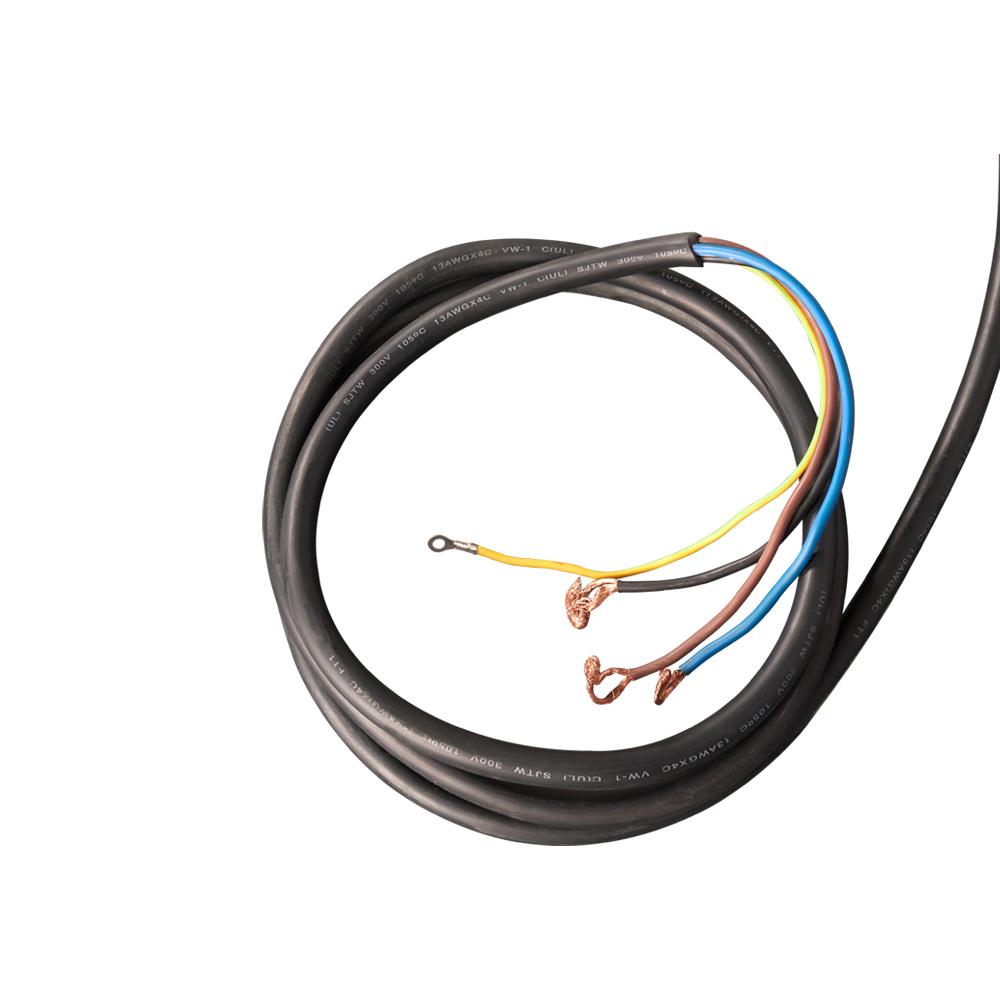

Voltage(V):	220V/ 380V
Power(KW):	7
Temperature(℃):	0-299
Delaying time(S):	1-999
G.W.(LB):	396.9
Packing Size(in):	76.8” x 37.4” x 37.45”
Accept Thickness:	Max. 2.36” Thick Items
Range of Application:	Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:	28″ x 35” (70 x 90cm)

Time and Temperature Requirements of Different Materials

Material	Time	Temperature
Pure cotton	15s-25s	356℉-428℉ (180℃-220℃)
Polyester	40s	356℉ (180℃)
Chemical fiber	10s-40s	302℉-356℉ (150℃-180℃)
Pearl board	60s-100s	356℉ (180℃)
Metal pendant	60s	356℉ (180℃)
Mousepad	50s	374℉ (190℃)
Vitrolite	180s	392℉ (200℃)
Key ring pendant	100s
Ceramics	180s	356℉-428℉ (180℃-220℃)
