Large Format Printing: Perfect for large garments, banners, and flags with 24″x32″ heat press capacity. Precise Controls: Advanced digital panel ensures exact temperature and time settings for consistent results. Durable Build: Heavy-duty aluminum and reliable pneumatic system guarantee long-lasting performance. Versatile Use: Ideal for textiles, ceramics, and more; supports various materials for creative projects. Efficient Operation: Boost productivity with high-efficiency batch production and easy-to-use design.

-10%

24x32-Single-Station-Pneumatic-Heat-Press-with-Slide-Out-Drawer-990x990

24x32-heat-press-machine-uesed-for-990x975

Click to enlarge

24″x32″ Large Format Pneumatic Heat Press with Slide Out Drawer

Original price was: $2,459.00.Current price is: $2,213.00.

Meet your new production partner! This 24″x32″ pneumatic heat press is built to work tirelessly by your side, offering precise control, sturdy reliability, and versatility. Ready to handle any material, it ensures every project turns out perfectly, every time.

MyExpert Support & Protection

Arrival in 7-15 Business Days.
Lifetime Technical Support
30-day Easy Returns

Feature

Large Format Printing: Perfect for large garments, banners, and flags with 24″x32″ heat press capacity.
Precise Controls: Advanced digital panel ensures exact temperature and time settings for consistent results.
Durable Build: Heavy-duty aluminum and reliable pneumatic system guarantee long-lasting performance.
Versatile Use: Ideal for textiles, ceramics, and more; supports various materials for creative projects.
Efficient Operation: Boost productivity with high-efficiency batch production and easy-to-use design.

Specification

24″x32″ Large Format Pneumatic Slide Out Drawer Heat Press Machine

Voltage(V):	220V single phase
Power(KW):	6
Temperature(℃):	0-299
Delaying time(S):	1-999
G.W.(LB):	403.5
Packing Size(in):	45.3” x 32.3” x 36.6”
Accept Thickness:	Max. 2.36” Thick Items

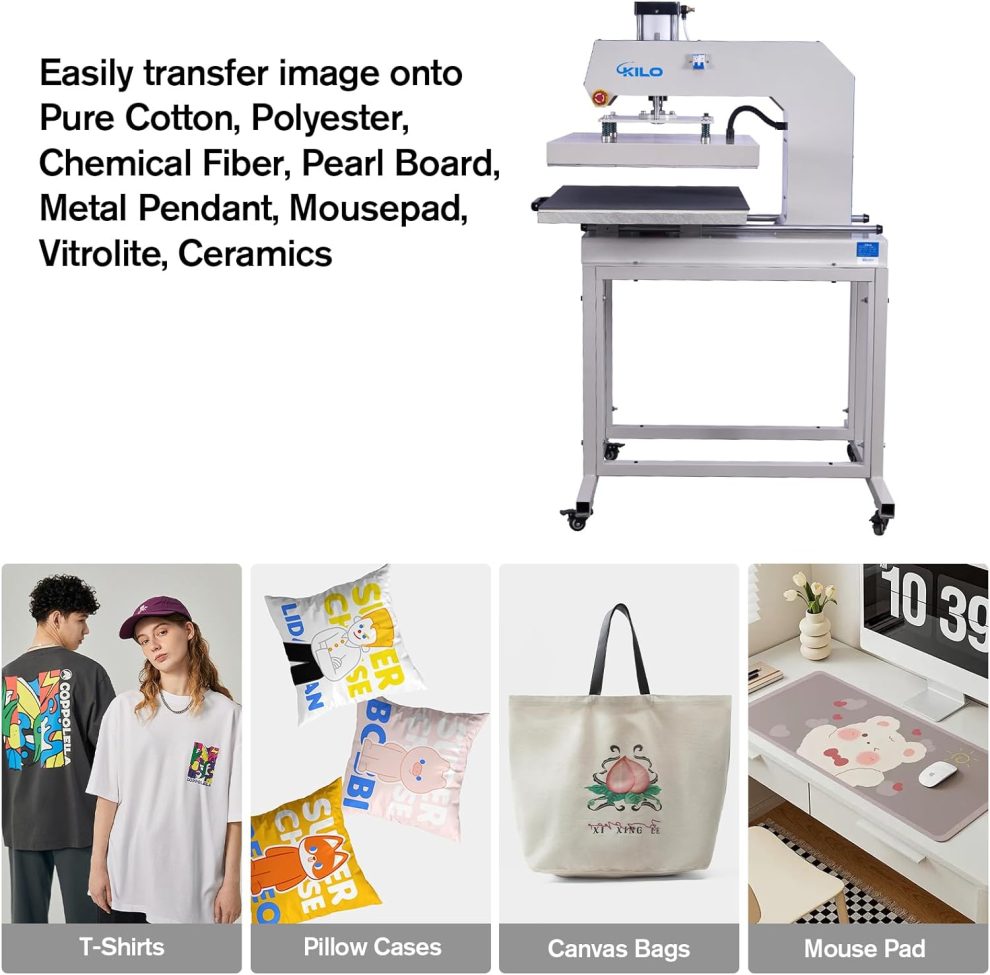

Range of Application:	Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:	24″ x 32” (60 x 80cm)

Time and Temperature Requirements of Different Materials

Material	Time	Temperature
Pure cotton	15s-25s	356℉-428℉ (180℃-220℃)
Polyester	40s	356℉ (180℃)
Chemical fiber	10s-40s	302℉-356℉ (150℃-180℃)
Pearl board	60s-100s	356℉ (180℃)
Metal pendant	60s	356℉ (180℃)
Mousepad	50s	374℉ (190℃)
Vitrolite	180s	392℉ (200℃)
Ceramics	180s	356℉-428℉ (180℃-220℃)

Air Compressor Details: (Need buy extra)

F.A.D/Max Pressure(m³/Min/MPa):	2.2/0.8
Lubricant Oil (Liter):	10
Voltage:	110V/60HZ, 220V/single phase
Power (KW):	15
Starting Mode:	Variable Frequency Start
Outer Pipe Diameter (inch):	Rp3/4

FAQs

What model of Air Compressor is required for this Heat Press?

The required Air Compressor specifications are: 6 Gallon, Oil Free Small Electric Pancake Air Compressor, Max 150 PSI.
Are there spare parts for the machine available in the US?

We stock all spare parts for our Heat Press machines, such as silicone pads, in our local US warehouse. If you need a replacement, please feel free to message us at any time.
The machine requires 220V and comes without a plug. How does the machine connect the power?

This machine doesn’t come with plug because the output current is too big. So you need to connect three lines to main fuse box directly ( live wire to the live wire, the neutral wire to the neutral wire, and the ground wire to the ground wire.)
Does the machine provide even heat distribution across the entire surface?

Yes, This heat press features a powerful 6000W heating element that ensures rapid and even heat distribution across the 24×32 inch surface. Reducing errors and waste, which helps in quickly recovering your costs.
