16″x24″ Dual Platen Pneumatic Heat Press Machine
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-999 |
| G.W.(LB): | 306.5 |
| Packing Size(in): | 42.5” x 33.9” x 32.3” |
| Accept Thickness: | Max. 2.36” Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16” x 24” (40 x 60cm) |
Time and Temperature Requirements of Different Materials
| Material | Time | Temperature |
| Pure cotton | 15s-25s | 356℉-428℉ (180℃-220℃) |
| Polyester | 40s | 356℉ (180℃) |
| Chemical fiber | 10s-40s | 302℉-356℉ (150℃-180℃) |
| Pearl board | 60s-100s | 356℉ (180℃) |
| Metal pendant | 60s | 356℉ (180℃) |
| Mousepad | 50s | 374℉ (190℃) |
| Vitrolite | 180s | 392℉ (200℃) |
| Ceramics | 180s | 356℉-428℉ (180℃-220℃) |
Features
Dual Platen Efficiencys
Each platen operates independently, allowing for continuous printing; while one item is being pressed, the other can be set up, effectively doubling your productivity.

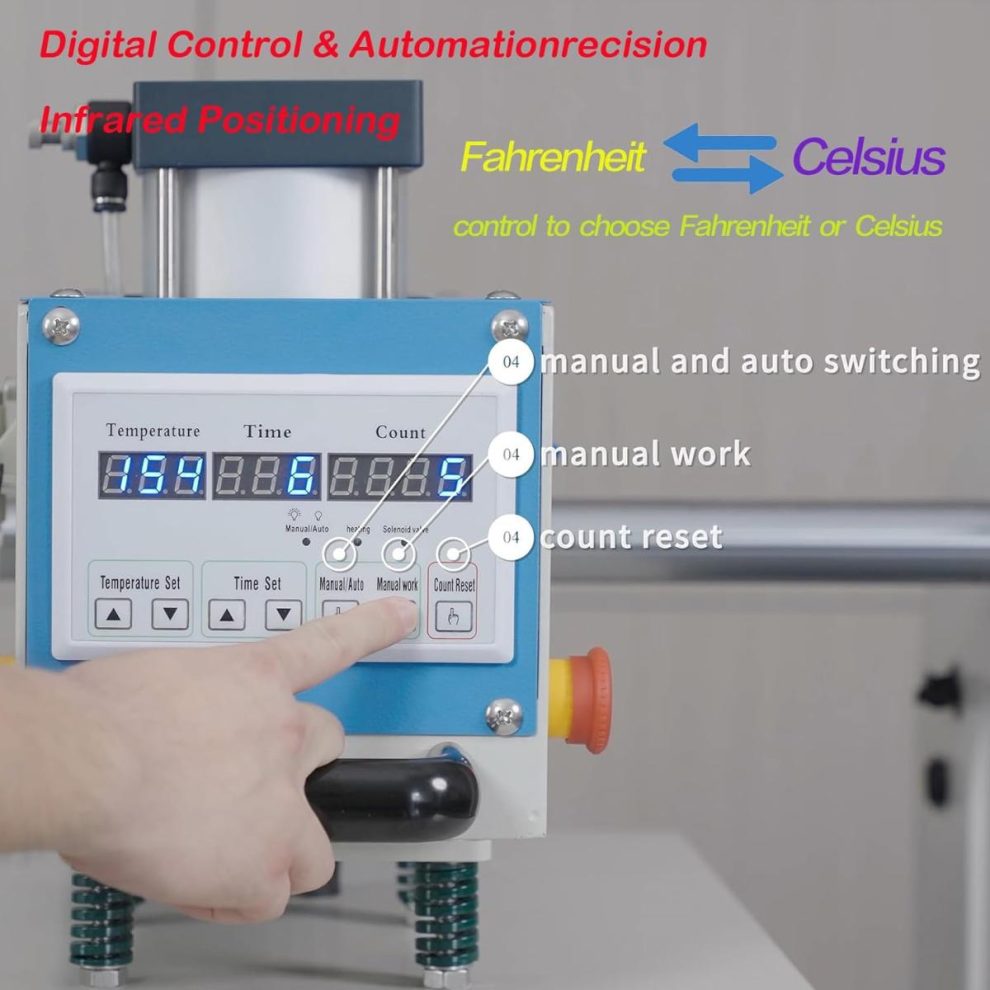

Programmable Digital Control
You can program and monitor temperature, pressure, and timing with precision, making complex printing tasks simpler and more reliable.

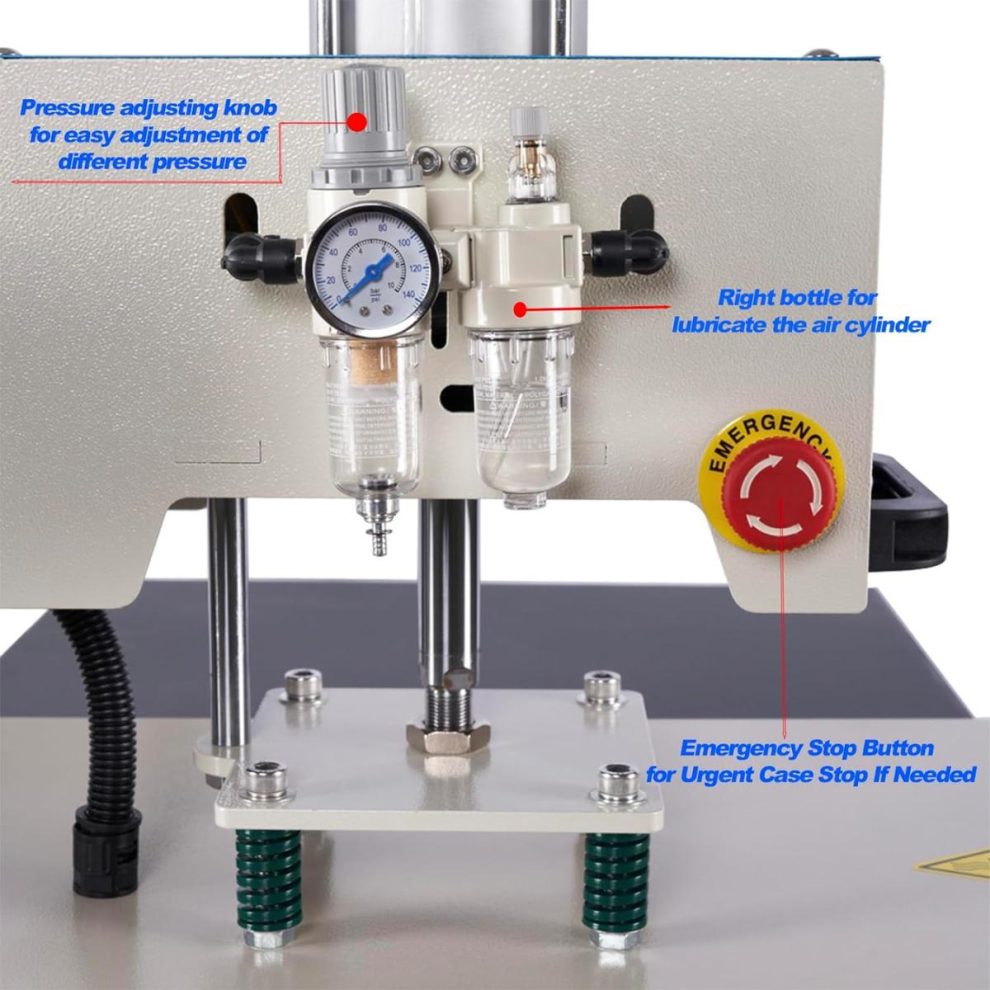

Pneumatic Pressure System
The pneumatic pressure system delivers consistent, This feature ensures high-quality, uniform transfers on a variety of materials.
